Solenoid valves for high-pressure applications

Reliable flow direction control

The VDH/VDHT solenoid valve is used to control the flow direction in high-pressure water applications. The solenoid valve is pilot operated On/Off seat valve electrically activated by a coil and is available for a wide range of flows and pressures.

The valves are used in several applications: car wash systems, stationary high pressure cleaning, mobile cleaning vehicles and dust bindings systems, etc.

The VDHT valve series are designed for several applications in neutral media compatible with the sealing and O-ring materials used. Typical media are water, cleaning fluids and light heating oil.

Features and benefits

Corrosion resistant
High reliability
High degree of enclosure, IP67

Product range

VDHT 2/2 way block valve

Flow range: 0-150 l/min, 0-39.6 gpm
Pressure range: 0-160 barg, 2,321 psig

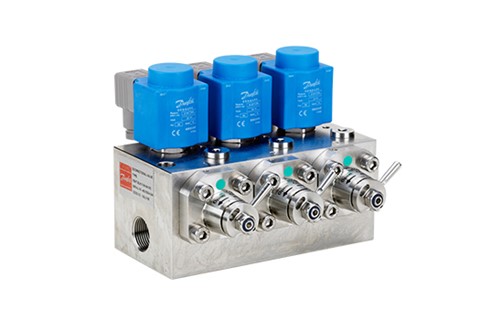

VDHT 2/2 way manual bypass valve

Flow range: 0-150 l/min, 0-39.6 gpm
Pressure range: 0-140 barg, 2,031 psig

VDHT/VDH 2/2 way valve

Flow range: 1-120 l/min, 0.26-31.7 gpm
Pressure range: 6-140 barg, 87-2,031 psig

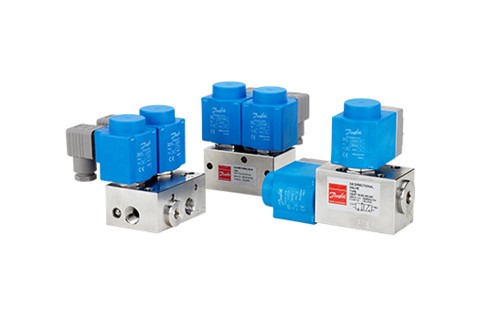

VDHT 3/2 way zone drain valve

Flow range: 0-15 l/min, 0-3.96 gpm
Pressure range: 0-160 barg, 2,321 psig

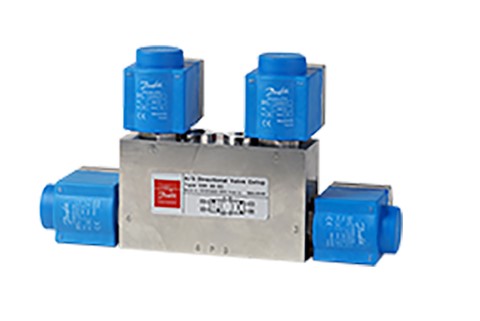

VDH 4/3 way valve

Flow range: 1-30 l/min, 0.26-7.9 gpm
Pressure range: 5-140 barg, 72.5- 2,031 psig
