APP Pumps
Compact, simple and energy efficient pumps
Danfoss APP pumps are designed for Reverse Osmosis. The high-pressure pumps have versatile applications in land-based, marine or offshore plants.
The APP pumps provide unsurpassed efficiency and great flexibility for configuration. The simple construction of the axial piston pump with fewer parts allows highly reliable operation with long service intervals and easy maintenance.
The Danfoss APP pumps are available in various sizes from 0.6 m3/h to 86 m3/h for use in small and medium-sized SWRO facilities. See the product program below
Features and benefits
Extensive application know-how Highest efficiency rates in the industry Compact and small – half size of competing pumps Long time between service intervals Easy and service-friendly design Simple and reliable with high uptime Short pay-back time

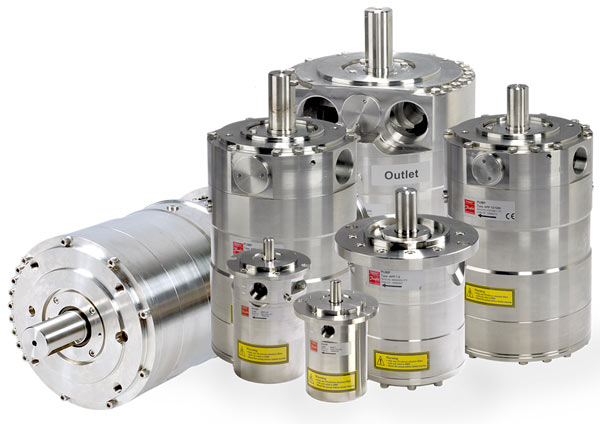

Product range

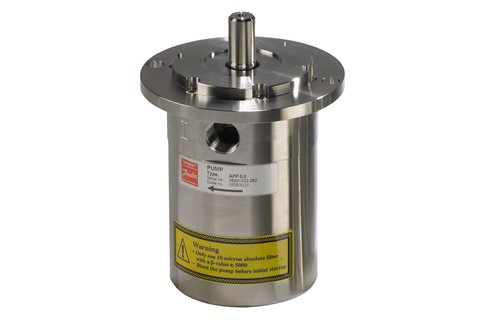

APP 0.6-1.5 high pressure pump
Pressure range: Max outlet pressure: 80 barg/1,160 psig
Min. outlet pressure, inlet: 0.5-5 barg/7.3-72.5 psig
Flow range: 0.2-1.3 m3/h – 0.9-5.7 gpm
Speed: 700 to 3,450 rpm

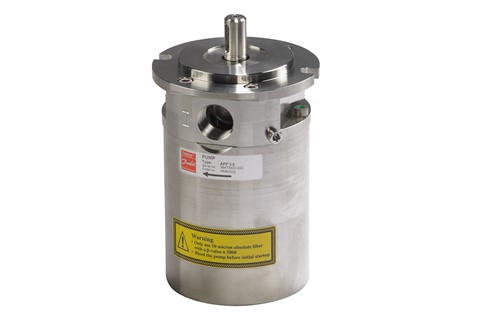

APP 1.5-3.5 high pressure pump
Pressure range: Max outlet pressure: 80 barg/1,160 psig
Min. outlet pressure, inlet: 0.5-5 barg/7.3-72.5 psig
Flow range: 0.4-3.5 m3/h – 1.8-15.4 gpm
Speed: 700 to 3,450 rpm
APP 5.1-10.2 high pressure pump
Pressure range: Max outlet pressure: 80 barg/1,160 psig
Min. outlet pressure, inlet: 0.5-5 barg/7.3-72.5 psig
Flow range: 1.9-10.7 m3/h – 8.4-47.1 gpm
Speed: 700 to 1,800 rpm
APP 11-13 high pressure pump
Pressure range: Max outlet pressure: 80 barg/1,160 psig
Min. outlet pressure, inlet: 0.5-5 barg/7.3-72.5 psig
Flow range: 9.2-13.8 m3/h – 40.5-60.8 gpm
Speed: 700 to 1,500 rpm
APP 16-22 high pressure pump
Pressure range: Max outlet pressure: 80 barg/1,160 psig
Min. outlet pressure, inlet: 2-5 barg/29-72.5 psig
Flow range: 13,3-21,9 m3/h – 58.6-96.4 gpm
Speed: 700 to 1,500 rpm
Related products
Energy recovery devices for reverse osmosis applications
The 3-in-1 Energy Recovery Device (ERD) optimized for sea water reverse osmosis applications.
