PAH pumps
Light and compact pumps
Danfoss PAH high-pressure pumps are designed for tap water. PAH pumps are developed for various applications such as water hydraulic, firefighting and dust suppression. Lubrication of the moving parts is provided by the water itself. The PAH pumps are the lightest and most compact pumps in the industry and can be installed horizontally and vertically. The pumps offer service intervals up to 8,000 hours.
Features and benefits
Zero risk of oil contamination thanks to the pump’s ultra-clean technology, where no oil is needed Best in class reliability High energy efficiency, low CO2 emissions Compact design, low weight, easy configuration Long service life, only stainless steel used Market leading Total Cost of Ownership (TCO)
Product range

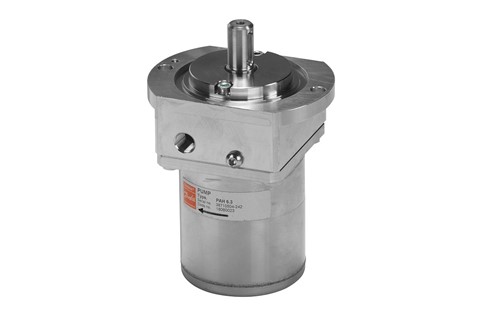

PAH 2-6.3 high-pressure pump
Pressure range: Max outlet pressure: 140 barg/2,031 psig.
Inlet pressure cont.: 0-4 barg/0-58 psig
Flow range: 1-10.1 l/min/0.26-2.67 gpm
Speed: 700-1,800 rpm

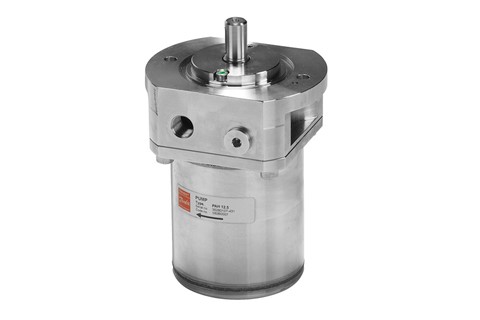

PAH 10-12.5 high-pressure pump
Pressure range: Max outlet pressure: 160 barg/2,321 psig
Inlet pressure cont.: 0-4 barg/0-58 psig
Flow range: 6.1-20.3 l/min – 1.61-5.36 gpm
Speed: 700-1,800 rpm

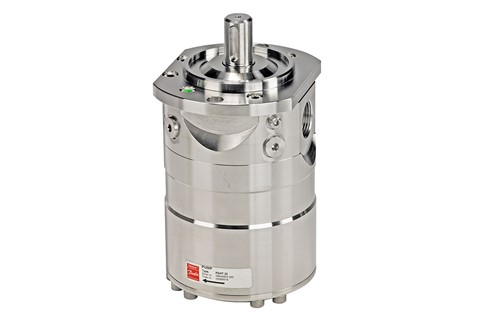

PAH 20-32 high-pressure pump
Pressure range: Max outlet pressure: 80 barg/1,160 psig (PAH 20) – 160 barg/2,321 psig (PAH 25-32)
Inlet pressure cont.: 0-4 barg/0-58 psig
Flow range: 12.4-53.8 l/min – 3.28-14.21 gpm
Speed: 700-1,800 rpm
PAH 50-100 high-pressure pump
Pressure range: Max outlet pressure: 80 barg/1,160 psig (PAH 50) – 160 barg/2,321 psig (PAH 63-80) – 80 barg/1,160 psig (PAH 100)
Inlet pressure cont.: 0-4 barg/0-58 psig
Flow range: 30.8-187 l/min (8.14-49.4 gpm)
Speed: 700-1,800 (PAH 50) 700-2,400 (PAH 63-80) 700-1,500 (PAH 100)
Related products
Pressure relief valves VPH/VRH
Reliable pressure relief valves for high-pressure applications. The relief valve is used for protecting the components of a system against overload as a result of a pressure peak.
